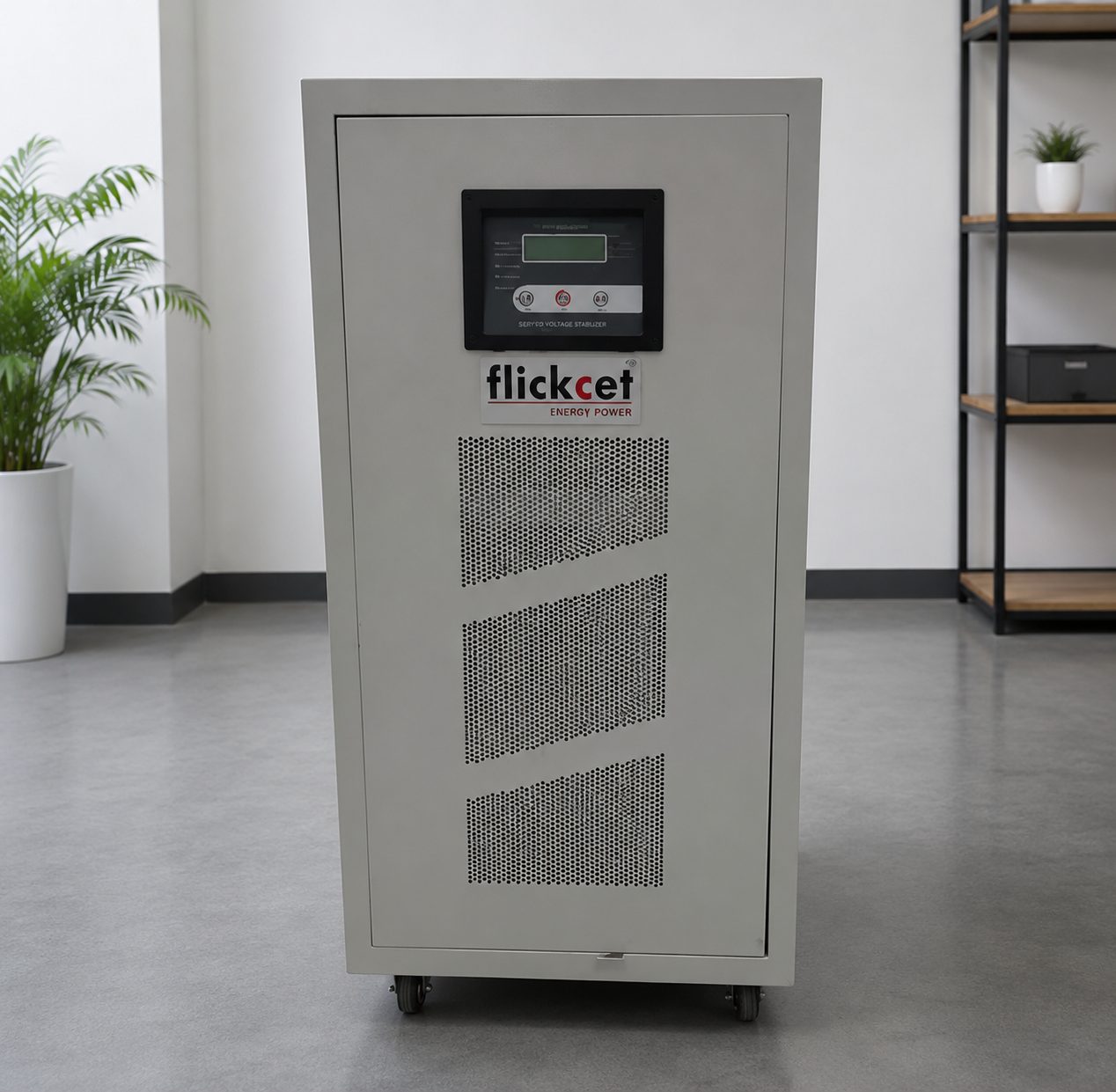

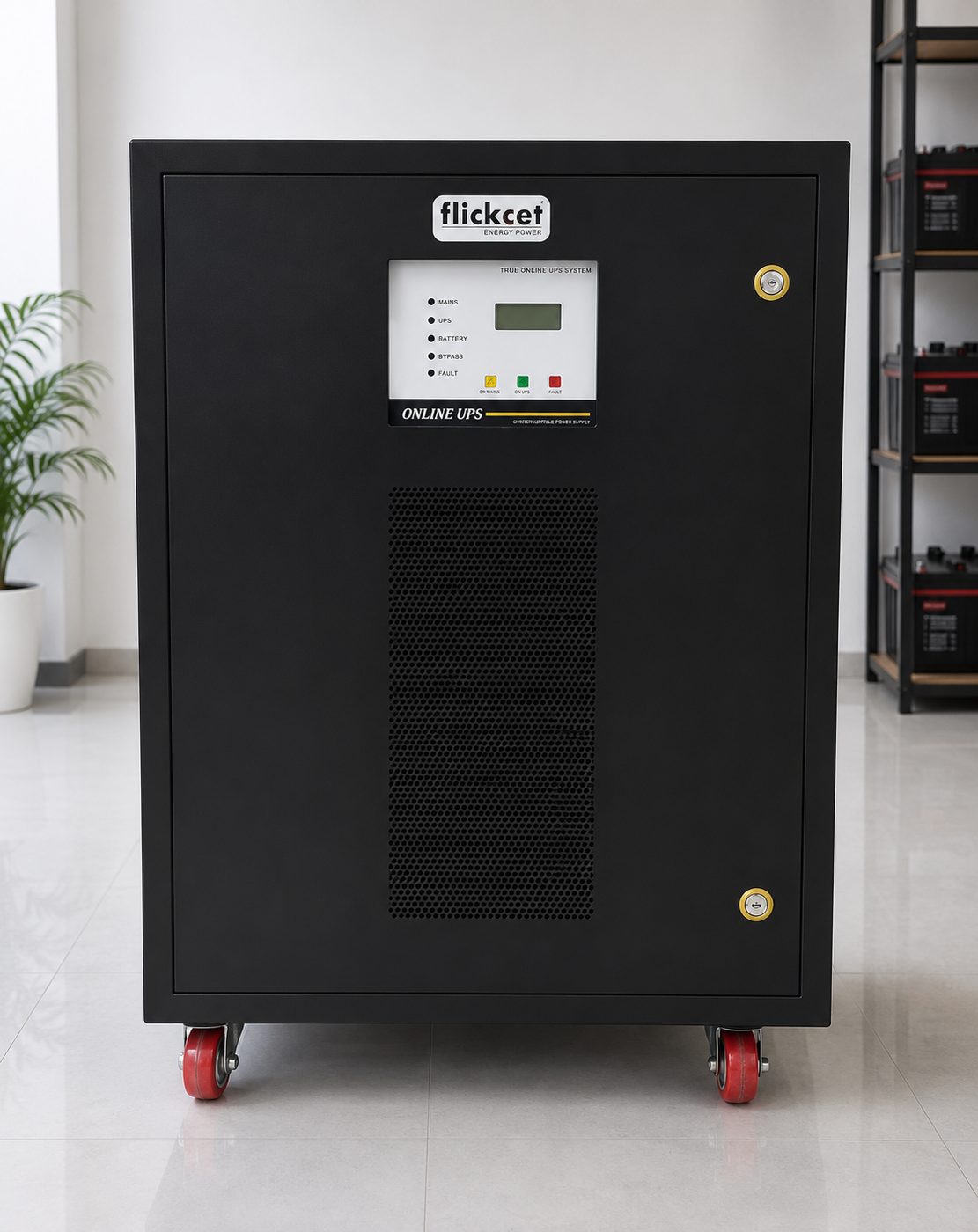

Online UPS
True double-conversion UPS with zero transfer time, protecting servers, control systems and critical loads from 1 KVA to 500 KVA.
Engineered for continuous industrial duty
True double-conversion topology
Load is continuously powered from the inverter, eliminating any transfer time during a mains failure.
Single & three phase in/out
Configurations available for 1-in-1-out, 3-in-1-out and 3-in-3-out installations.
Scalable battery backup
Battery banks sized to your required autonomy, from minutes to hours.
Built-in bypass & monitoring
Static bypass switch and remote monitoring options for critical installations.
Performance parameters
| Capacity | 1 KVA to 500 KVA |
| Topology | True online double-conversion |
| Input/Output | 1-Phase or 3-Phase in / out configurations |
| Transfer time | 0 ms (continuous inverter operation) |
| Output waveform | Pure sine wave |
| Battery | SMF/VRLA, sized to required backup time |
| Protection | Overload, short-circuit, over/under voltage, bypass |
| Application | Indoor, server & control room grade |
All specifications are subject to change due to technology upgradation without notice. Custom ratings available on request.
Where it's used
Why customers choose this system.
Zero transfer time
Load never sees a break in power, unlike line-interactive or offline UPS types.
Clean sine-wave output
Protects sensitive electronic loads from harmonics and voltage noise.
Configurable autonomy
Battery capacity engineered to your required backup duration.
Talk to our engineering team before you order.
Send your capacity, phase, unbalance and installation environment and we'll confirm the right specification — including enclosure rating, safety functions and delivery timeline.
